| Features: | Single Conveyor Belt, Hot Air Through Heating | Type: | Thermal Bonding Oven |
|---|---|---|---|
| Available Products Weight: | 100～600 GSM | Heating Area: | 6 – 10 Meters (customization) |
| Highlight: | Electrical heating fabric oven,fabric oven for soft wadding,600GSM hot air through oven |
||

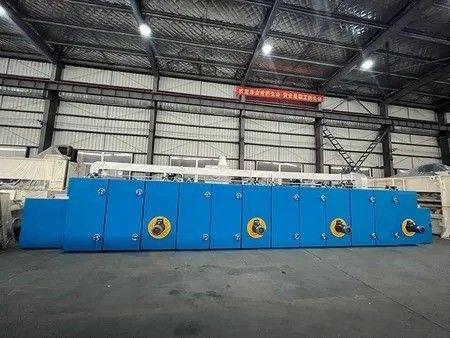

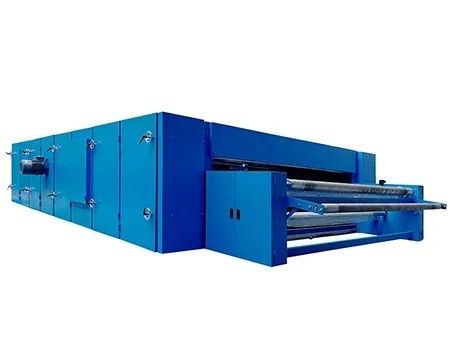

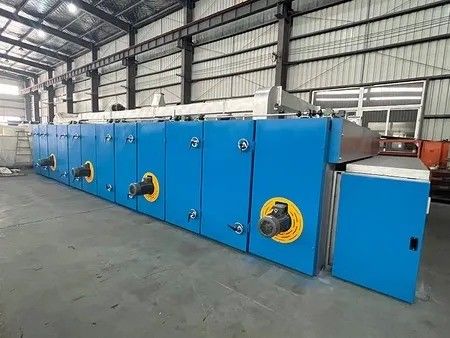

Thermalbonding oven, belong to the nonwoven equipment, utilizes the process of hot air penetration to heat the fiber web containing low-melting point fibers, thus achieving the bonding and reinforcement of the fiber web, resulting in the formation of bonded fiber web.
Thermalbonding oven is used in nonwoven production lines and is suitable for producing various soft and low GSM products, such as thermal bonded wadding, fillers, insulation materials, etc.
| Working width | 2300mm～4000mm |
| Available products weight | 100～600 GSM |
| Optional Heating method | Boiler with thermal oil |
| Burner (gas, diesel, LPG etc) | |
| Electrical radiator | |
| Structure features | Single floor ; Single conveyor |
| Heating area | 6 – 10 meters (customization) |
