Double Board Needle Punching Machine

Double Board Needle Punching Machine
Double Board Needle Punching Machine Double Board Needle Punching Machine Double Board Needle Punching Machine

Large Image :  Double Board Needle Punching Machine

Product Details:
Contact Now
Detailed Product Description
Product: Double Board Needle Punching Machine Attributes: ≤600 Rpm, ≤1200 Rpm,2000mm~9000mm
Highlight:

double needle punching machine

,

fabric finishing punching machine

,

industrial needle punching machine

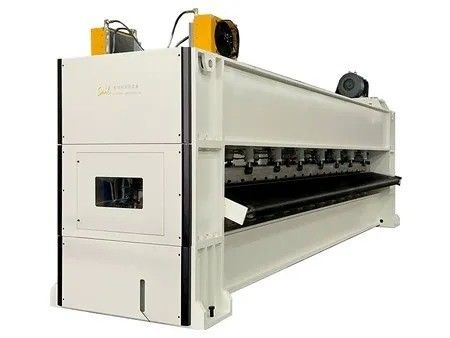

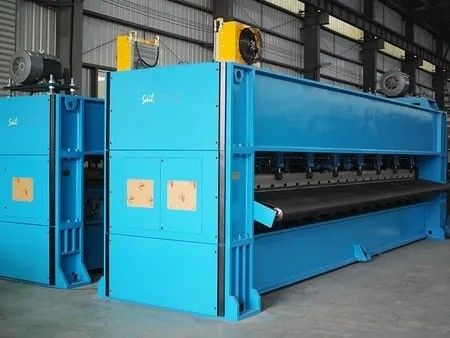

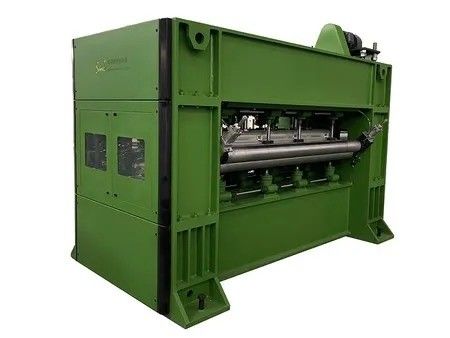

Double Board Needle Punching Machine

Single needle loom including two needling sections
Double Board Needle Punching Machine 0
Double Board Needle Punching Machine 1 Double Board Needle Punching Machine 2 Double Board Needle Punching Machine 3

Double board needle punching machine is crucial nonwoven equipment, distinguished by its two needle boards (or needling zones), which provide cost-effectiveness and process optimization advantages. By combining different stroke types, the double board needleloom can meet various production process requirements.

Needling frequency: ≤600 rpm, ≤1200 rpm
Working width: 2000mm~9000mm
Request Information
Applications

Double board needle punching machine is utilized in the primary production processes of various nonwoven products, including but not limited to carpets, felts, linings, geotextiles, filtration media, oilcloth base fabrics, shoe midsoles, synthetic leather substrates, and more.

Specifications
Needling frequency ≤600 rpm ≤1200 rpm
Working width 2000mm~9000mm
Stroke range 20~60mm
Stroke type Double Up-stroke Double Down-stroke Tandem Up & Down
Needling zone (▼▼) ; (▲▲) ; (▼▲)
Needle density ≤7500n/m x2 Needle Board
Features
  • Automatic variable frequency control.
  • Advanced segmented modular design offers high structural strength, ensuring stable and reliable operation.
  • Computer-controlled random needle distribution results in superior appearance and quality of products.
  • Double board needleloom features dual crank shaft structure and dual tandem drive.
